MYG
| Quantity: | |
|---|---|

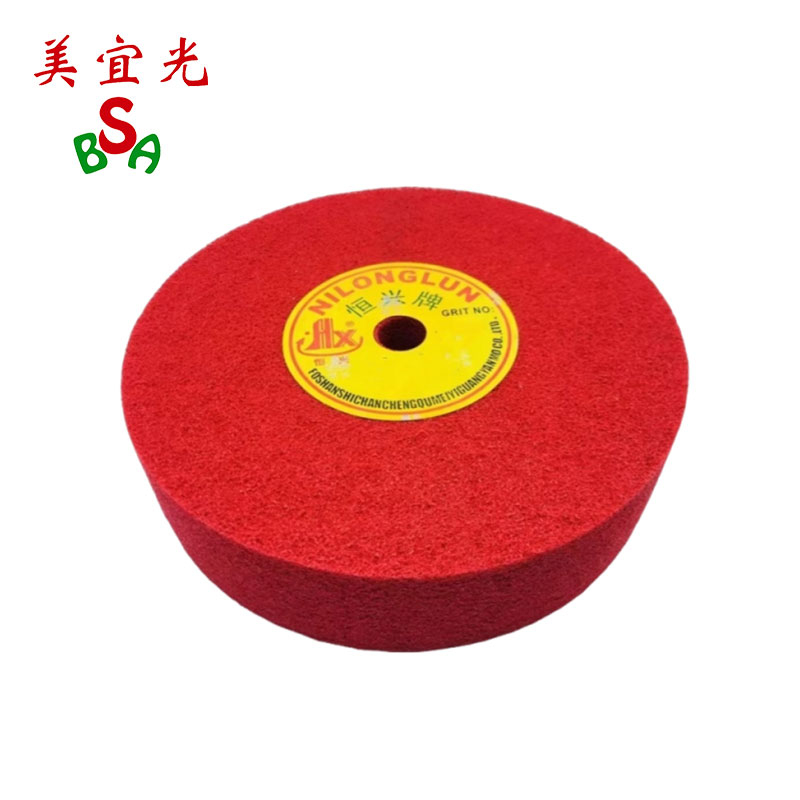

The MYG 8x2inch Red Unitized Wheel is a premium multi-functional polishing tool designed for soft metal and plated surface finishing. Made from high-toughness, high-temperature resistant nylon 66, superior abrasives, functional additives, and special adhesives, it features a unique multi-layer net structure that eliminates rotation direction limits, making it extremely user-friendly. Its open structure provides excellent high-temperature resistance, preventing workpiece discoloration and deformation during processing. With a maximum safe speed of 3000RPM, this red unitized wheel delivers long-lasting performance, no blockage, and a uniform, high-brightness finish, making it indispensable for polishing copper, aluminum, and chrome-plated components.
Formulated with green silicon carbide and white aluminum oxide abrasives, the red unitized wheel excels in polishing copper, aluminum, and other soft metals. As well as chrome-plated surfaces, leaving no dark spots and ensuring a standard, glossy finish.
The high-toughness nylon 66 matrix and open multi-layer structure effectively dissipate heat during high-speed polishing, preventing workpiece overheating, discoloration, and deformation, even during prolonged use.
Operating smoothly on 3000RPM high-speed polishing machines, the wheel avoids blockage and maintains stable performance, producing long line brush finishes and consistent grinding results that meet strict industrial standards.
From outer diameter and width to inner hole shape and grit size, almost every parameter of the unitized wheel can be customized, catering to the unique needs of different industries and applications.
The MYG 8x2inch Red Unitized Wheel is constructed with four high-quality components: high-toughness, high-temperature resistant nylon 66 for the base structure; superior green silicon carbide and white aluminum oxide as core abrasives; functional additives to enhance heat dissipation and wear resistance; and special adhesives to bond layers firmly, ensuring the wheel’s structural integrity during high-speed rotation.
Parameters | Values | Customization |
Outer Diameter | 8inch | 1inch–20inch (2.5cm–50cm) |
Width | 2inch | 0.2inch–8inch (0.5cm–20cm) |
Inner Hole Diameter | 19mm | Custom shapes (cycle/square/hexagon/cross) |
Grit Size | 180#/240#/320# | 46#–3000# (green silicon carbide) |
Density/Hardness | 7P/9P/12P | 2PLy–28PLy |
Color | Red | Grey/Green/Maroon/Brown/Dark Brown |
Speed | 3000RPM | 3000RPM (fixed) |
2-inch thick standard weight（KG） | ||||||
Outer diameter | ||||||
Density or hardness | 6inch | 8inch | 10inch | 12inch | 14inch | 16inch |
2P | 0.1-0.11 | 0.19-0.2 | 0.35-0.4 | 0.55-0.6 | ||
3P | 0.12-0.14 | 0.25-0.28 | 0.45-0.48 | 0.7-0.75 | 0.8-0.85 | 1-1.1 |
4P | 0.16-0.18 | 0.28-0.33 | 0.52-0.55 | 0.8-0.9 | 0.94-1 | 1.25-1.3 |
5P | 0.2-0.23 | 0.37-0.42 | 0.6-0.65 | 0.93-0.97 | 1.15-1.25 | 1.5-1.6 |
7P | 0.26-0.29 | 0.46-0.51 | 0.76-0.83 | 1.2-1.25 | 1.52-1.6 | 2-2.1 |
8P | 0.3-0.33 | 0.52-0.58 | 0.84-0.88 | 1.28-1.35 | 1.7-1.8 | 2.2-2.3 |
9P | 0.34-0.37 | 0.62-0.66 | 0.97-1.03 | 1.5-1.6 | 1.97-2.07 | 2.5-2.6 |
12P | 0.39-0.43 | 0.71-0.77 | 1.15-1.23 | 1.8-1.9 | 2.32-2.42 | 3-3.2 |
14P | 0.44-0.48 | 0.8-0.86 | 1.26-1.32 | 2-2.15 | 2.6-2.7 | 3.3-3.5 |
16P | 0.5-0.52 | 0.91-0.95 | 1.4-1.46 | 2.3-2.4 | 2.86-2.96 | 3.6-3.75 |
The weight error is ±5%, which is within the normal range.
The above are the reference weights for the regular products. For other sizes and weights, please feel free to contact us for further discussion.
Perfect for polishing plane parts, auto components, stainless steel kitchenware, tableware, and vacuum flasks, enhancing their surface brightness and aesthetic appeal.
Used for finishing building metalware such as handles, hinges, and locks, improving surface smoothness and corrosion resistance.
Ideal for polishing copper wares, aluminum wares, copper-plated, and bronze-plated surfaces, delivering a flawless, mirror-like finish.
Suitable for processing woodenware, plastic wares, and marble, meeting the polishing needs of diverse non-metal workpieces.
The unitized wheel has no rotation direction limit; install it directly on 3000RPM polishing equipment and start the machine. Wait for stable rotation before contacting the workpiece surface.
Maintain a steady distance between the wheel and the workpiece; apply light, even pressure to avoid excessive grinding that may damage the workpiece surface.
For large-area plating polishing, move the wheel in a uniform linear motion to ensure consistent line brush finishes and avoid overlapping grinding marks.
Select the appropriate grit size based on processing requirements: coarse grit for rough polishing, and fine grit for high-brightness finishing.
Avoid using the wheel in environments with flammable dust or gases to prevent fire or explosion risks caused by high-speed friction sparks.
The wheel generates mild heat during use; take short breaks at regular intervals to cool it down, preventing overheating that may affect polishing quality.
After use, turn off the equipment and wait for the wheel to stop completely. Clean the surface with a soft brush to remove abrasive residue, then store it in a dry area to avoid moisture absorption and deformation.
Regular stock items have no MOQ; customized specifications require a minimum order of a small batch. Discounts are available for large-quantity orders.
Yes, the standard color is red, and customizable options include grey, green, maroon, brown, and dark brown, based on different abrasive combinations.
Yes, it is specially designed for post-chrome plating polishing, leaving no dark spots and ensuring a high-gloss, standard finish.
Looking for a high-performance unitized wheel for soft metal and plating polishing? Reach out to us today to inquire about customized specifications and get a quote. Take advantage of our flexible MOQ policy and add the MYG 8x2inch Red Unitized Wheel to your cart—upgrade your polishing process with a tool that delivers consistent, professional results!
