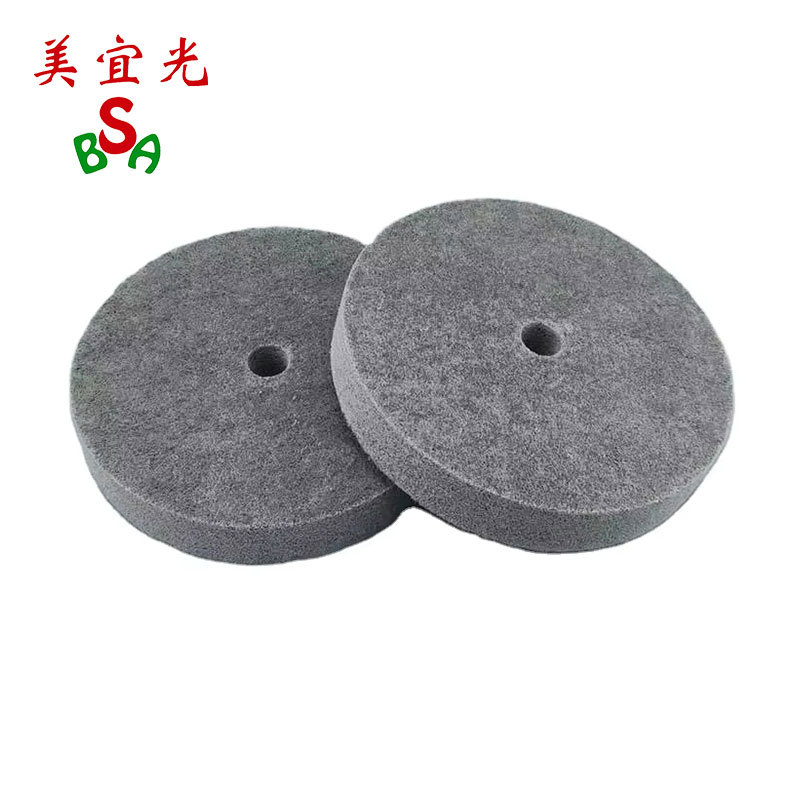

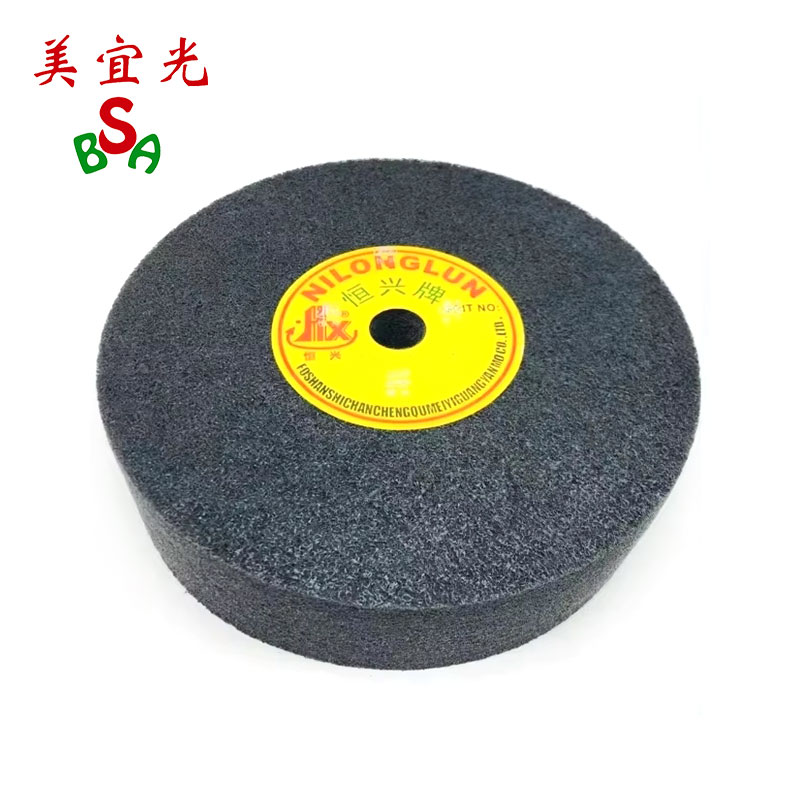

The MYG Unitized Wheel 8x2inch is a high-performance abrasive tool engineered for precision surface finishing. It adopts a multi-layer net structure, crafted from premium raw materials to deliver stable and efficient grinding results. This unitized wheel has no rotation direction limit, making it extremely easy to operate in various polishing scenarios. Its unique opening structure can resist high temperatures, effectively avoiding color change and deformation of workpieces during the process. It is an ideal choice for industrial polishing that requires consistent and high-quality finishes.
No Grinding Liquid Needed: It can remove burrs, smooth edges and angles of workpieces, and decorate special patterns without relying on grinding liquid, reducing operational costs and environmental pollution.
High-Speed Stability: It operates stably at 3000RPM without blockage, no dark points on the workpiece surface, ensuring good brightness and long line brush finishes, and maintaining a uniform surface standard.
Durable & Efficient: The continuous refreshed surface provides stable polishing effects, with high efficiency and long service life, reducing the frequency of tool replacement for enterprises.
This unitized wheel is made of high toughness and high temperature resistance nylon 66, combined with superior abrasive, functional additives and special adhesives. The selected materials ensure the tool's wear resistance and high-temperature resistance, adapting to long-time high-intensity polishing operations.
Parameters | Values | Customization |
Outer diameter | 8inch | 2.5CM - 50CM（1 inch - 20inch） |
Width | 2inch | 0.5CM - 20CM（0.2 inch - 8inch） |
Inner diameter | 19MM hole | All size hole: cycle/square/hexagon/cross, etc. |
Grit size | 180#/240#/320# | 46# - 3000#（SiC / Al₂O₃） |
Density or hardness | 7P/9P/12P | 2 - 28PLy |

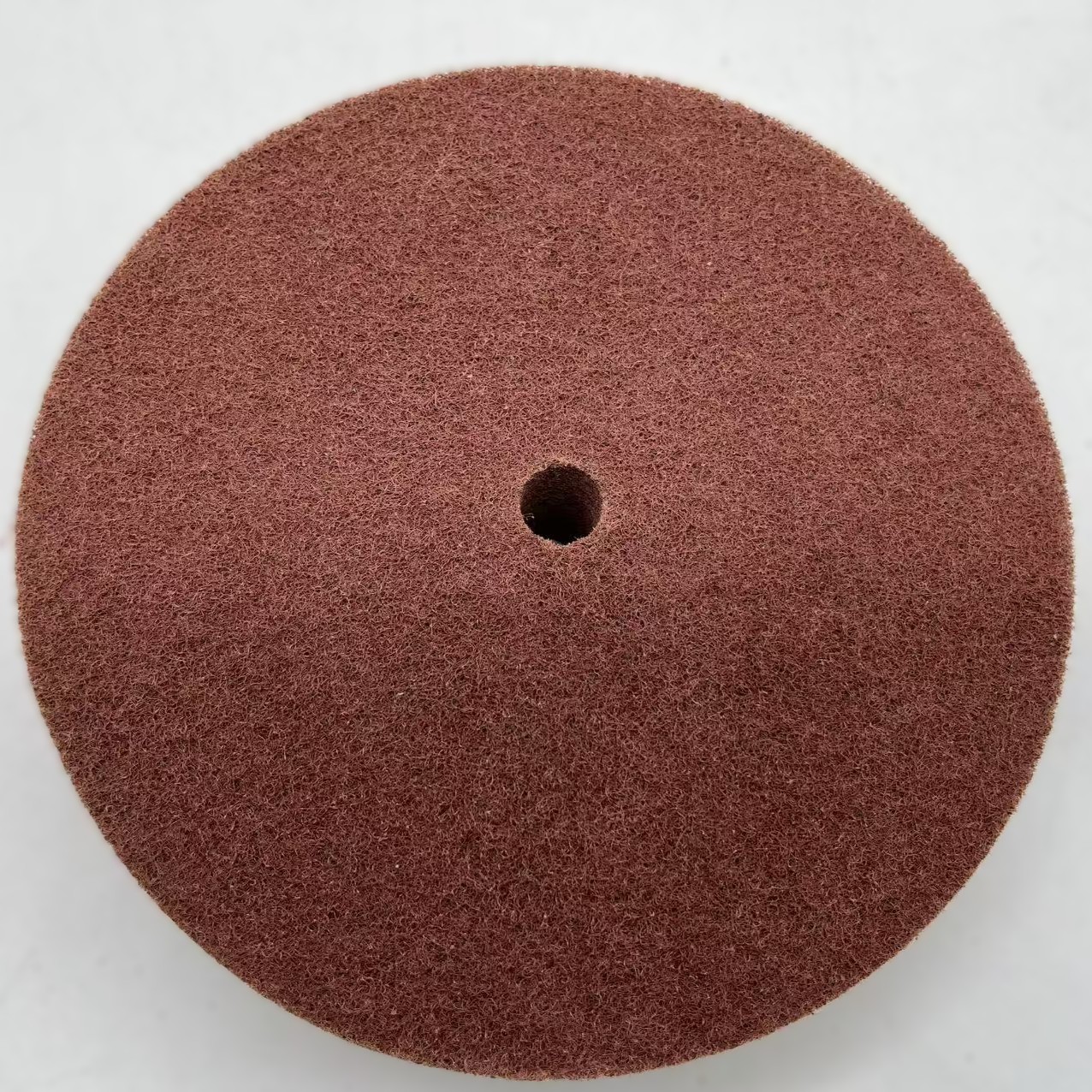

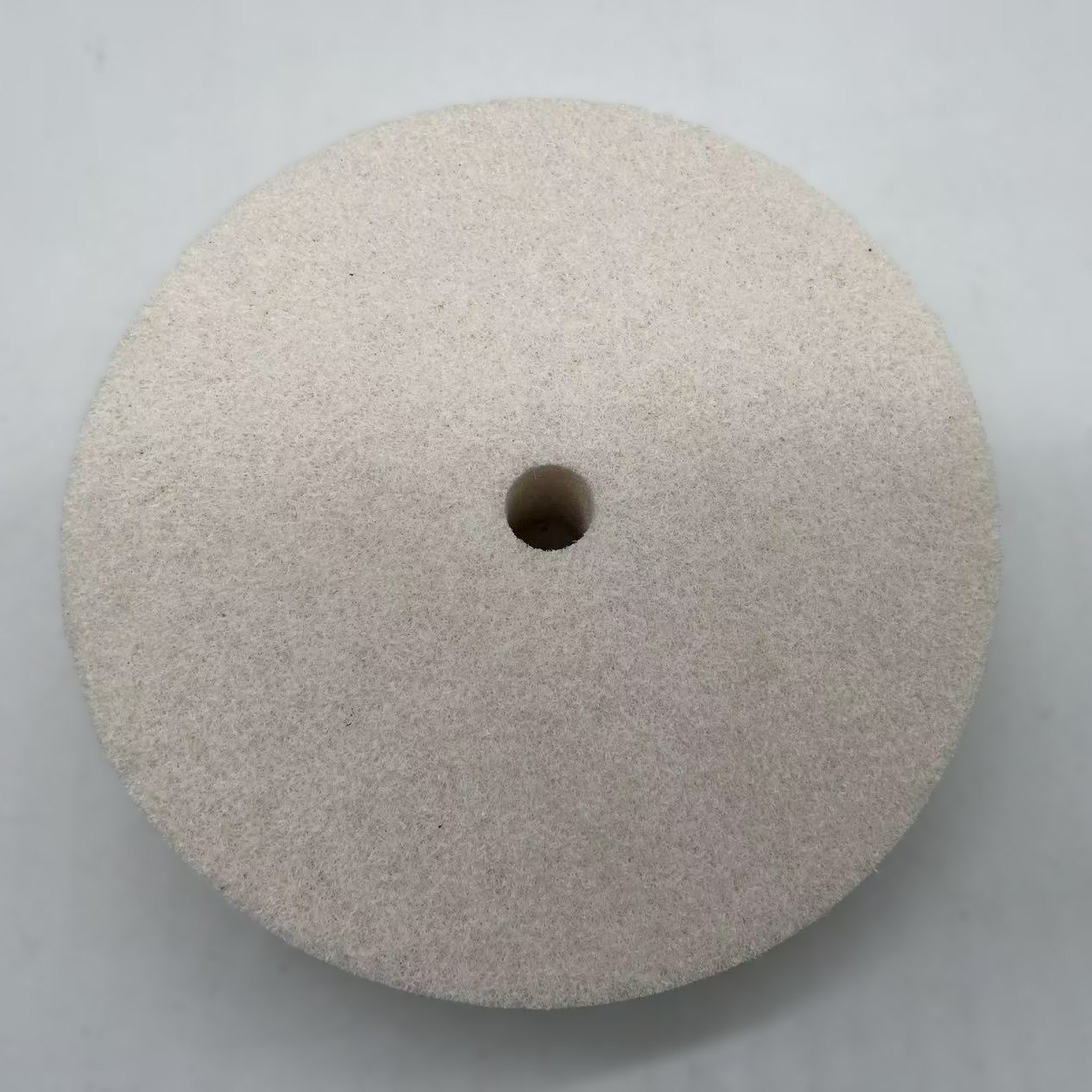

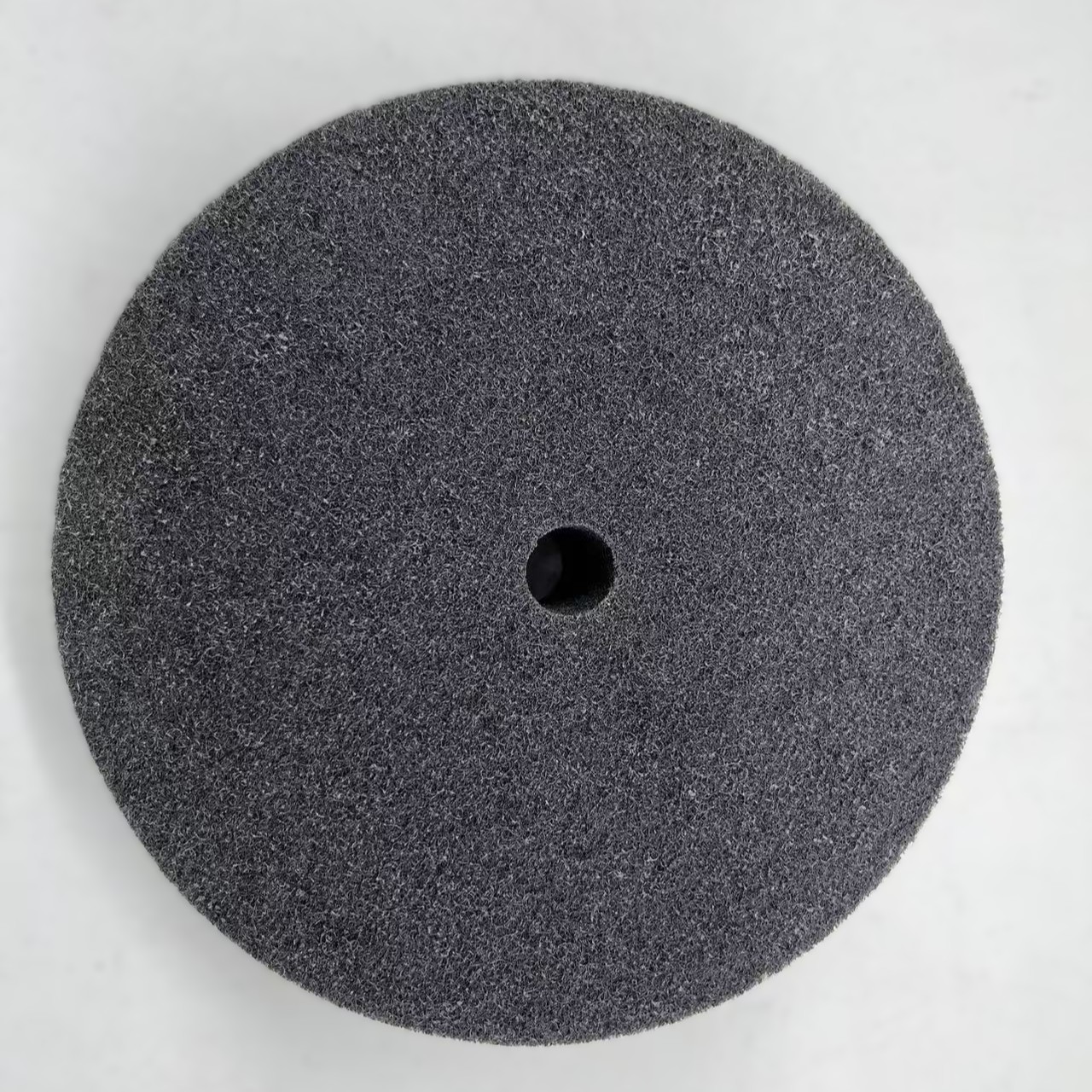

Color | Grey/Red | Grey/Red/Green/Maroon/Brown/Dark Brown |
Speed | 3000RPM | 3000RPM |
Note: The 2-inch thick standard weight varies with density and outer diameter, with a weight error of ±5% within the normal range.
2-inch thick standard weight（KG） | ||||||
Density or hardness | Outer diameter | |||||
6inch | 8inch | 10inch | 12inch | 14inch | 16inch | |
2P | 0.1-0.11 | 0.19-0.2 | 0.35-0.4 | 0.55-0.6 | ||
3P | 0.12-0.14 | 0.25-0.28 | 0.45-0.48 | 0.7-0.75 | 0.8-0.85 | 1-1.1 |
4P | 0.16-0.18 | 0.28-0.33 | 0.52-0.55 | 0.8-0.9 | 0.94-1 | 1.25-1.3 |
5P | 0.2-0.23 | 0.37-0.42 | 0.6-0.65 | 0.93-0.97 | 1.15-1.25 | 1.5-1.6 |
7P | 0.26-0.29 | 0.46-0.51 | 0.76-0.83 | 1.2-1.25 | 1.52-1.6 | 2-2.1 |
8P | 0.3-0.33 | 0.52-0.58 | 0.84-0.88 | 1.28-1.35 | 1.7-1.8 | 2.2-2.3 |
9P | 0.34-0.37 | 0.62-0.66 | 0.97-1.03 | 1.5-1.6 | 1.97-2.07 | 2.5-2.6 |
12P | 0.39-0.43 | 0.71-0.77 | 1.15-1.23 | 1.8-1.9 | 2.32-2.42 | 3-3.2 |
14P | 0.44-0.48 | 0.8-0.86 | 1.26-1.32 | 2-2.15 | 2.6-2.7 | 3.3-3.5 |
16P | 0.5-0.52 | 0.91-0.95 | 1.4-1.46 | 2.3-2.4 | 2.86-2.96 | 3.6-3.75 |
The weight error is ±5%, which is within the normal range.
The above are the reference weights for the regular products. For other sizes and weights, please feel free to contact us for further discussion.
Automotive & Metal Products: Polishing treatment of plane parts, metal wares, and stainless steel wares including knives, forks, kitchen utensils, tableware, and vacuum flasks.
Building Hardware: Finishing of building metal wares like handles, hinges, and locks.
Daily & Leisure Products: Polishing of metal watchbands, lamps and lanterns, and golf rackets.
Non-Metal Materials: Surface processing of woodenware, plastic wares, and marble.
Ensure the operating speed does not exceed 3000RPM to avoid tool damage and workpiece quality problems.
The weight error of the product is ±5%, which is a normal phenomenon and will not affect the use effect.
When replacing the unitized wheel, turn off the polishing machine and wait for it to stop completely to ensure operational safety.
No. The regular inventory color is gray, and other colors can be customized. The color is only for distinction and has no substantive impact on the product's polishing performance.
Regular stock items have no minimum order quantity. For special specifications, the minimum order quantity is 10 units. Discounts are available for large-quantity orders.
Yes. We offer customization services for dimensions, trademarks, colors, etc. You can inquire and discuss sample provision at any time.
Are you looking for a high-efficiency, durable unitized wheel for your polishing operations? Contact us now to inquire about MYG 8x2inch Unitized Wheel pricing and customization details. Add the product to your basket and start your precision polishing journey with MYG abrasives!
