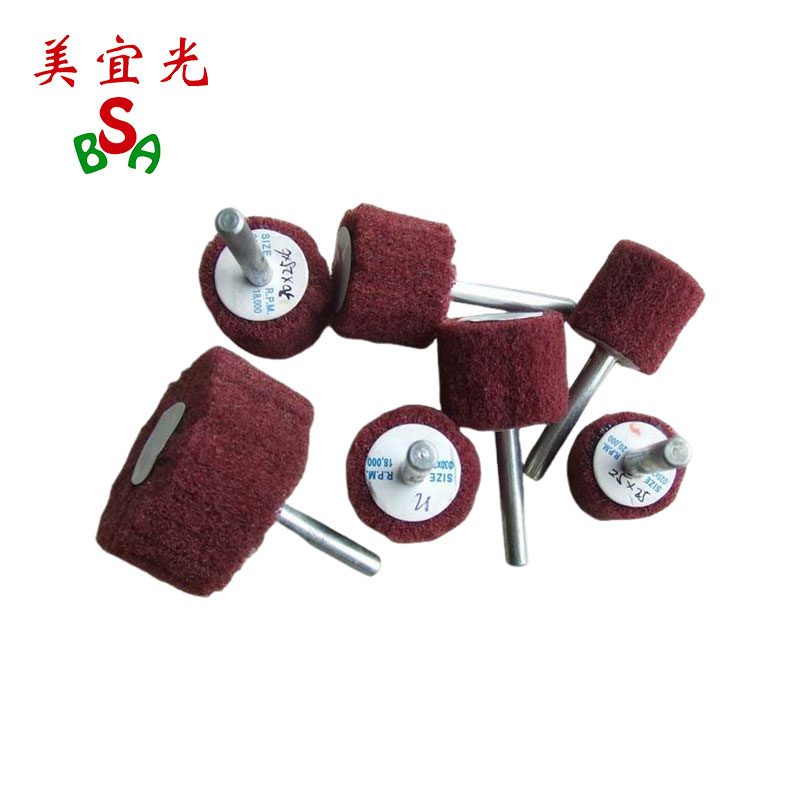

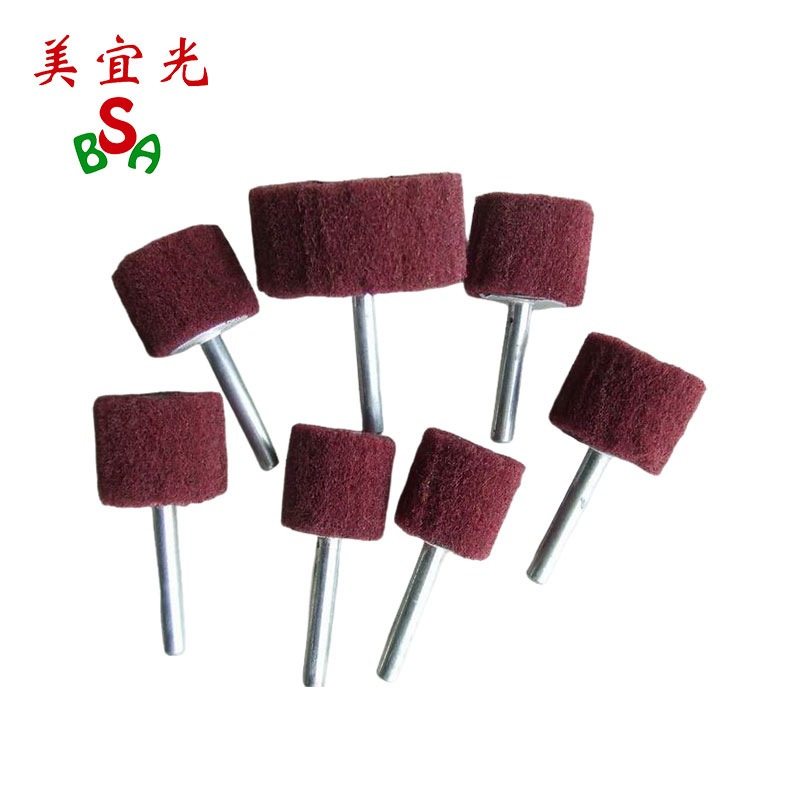

The Spindle Flap Wheel is a professional minitype abrasive tool engineered for hand polishing machines. Unlike traditional non-woven abrasive tools, it adopts a flap structure design to provide more uniform and efficient grinding performance in scenarios where large polishing equipment is not feasible. The tool is characterized by its high flexibility and wear resistance, ensuring stable operation even in continuous working conditions. Branded as MYG, it is widely recognized for its ability to achieve consistent surface precision across a variety of materials. It is an essential abrasive tool for industries focusing on high-quality surface treatment and finishing processes.
The spindle flap wheel runs smoothly at the rated speed of 3000RPM without blockage. Its flap structure enables better heat dissipation during grinding, avoiding workpiece surface burn caused by overheating.
The overlapping flap design ensures full contact between the abrasive tool and the workpiece surface, delivering uniform grinding results and excellent surface brightness. It can maintain consistent finishing quality for batch processing.
The tool supports comprehensive customization in outer diameter, width, spindle size, and hardness. This allows it to adapt to diverse processing scenarios, from rough grinding to fine polishing.
The Spindle Flap Wheel is constructed with high-quality abrasive cloth flaps as the core grinding part. These flaps are made of premium aluminum oxide abrasive grains, which are firmly bonded to the base cloth with resin binders for enhanced wear resistance. The spindle is made of high-strength steel, ensuring a tight and stable connection with the hand polishing machine. The combination of abrasive cloth flaps and steel spindle guarantees efficient grinding performance and long service life for the tool.
Parameters | Customization Range |
Outer Diameter | 25mm - 100mm |
Width | 12mm - 50mm |
Spindle Size | 3mm, 6mm |
Grit Size | 46# - 200# |
Density or Hardness | Soft, Medium, Hard |
Color | Grey, Brown, Maroon, Red, Green |
Speed | 3000RPM |
It is perfect for polishing building metal components such as hinges, locks, and door handles, improving their surface smoothness and aesthetic appeal.
The tool is suitable for processing copper wares, aluminum wares, copper-plated, and bronze products, restoring their luster and preventing oxidation.
It can be used for grinding stainless steel tableware, kitchen utensils, and vacuum flasks, removing burrs and improving surface texture.
It is applicable for surface treatment of metal watchbands, lighting fixtures, and golf rackets, ensuring fine and scratch-free finishing.
The tool works well for polishing wooden furniture, plastic products, and marble surfaces, achieving a smooth and uniform finish without material damage.
Ensure the flap wheel is firmly installed on the machine spindle before use. Loose installation may cause the tool to fly off during high-speed rotation, leading to safety accidents.
Strictly comply with the rated speed of 3000RPM. Over-speed operation will reduce the tool’s service life and may damage the workpiece.
Do not use the flap wheel for cutting or heavy-duty grinding tasks beyond its design scope, as this will cause premature wear of the flaps.
After use, clean the residual abrasive dust on the flap wheel and store it in a dry place to prevent the flaps from getting damp and losing grinding performance.
The hardness is divided into Soft, Medium, and Hard. Soft is suitable for fine polishing, Medium for general grinding, and Hard for rough grinding of hard materials.
Yes, the color can be customized into grey, brown, maroon, red, or green according to your brand requirements.
Absolutely. The flexible flap structure allows the tool to fit curved surfaces perfectly, making it ideal for polishing irregularly shaped workpieces.
Need an efficient and uniform grinding tool for your surface treatment tasks? Reach out to us to inquire about the Spindle Flap Wheel! Our professional team will provide you with customized solutions based on your processing needs. Add the product to your shopping cart now and experience high-precision polishing with stable performance!
