HTM
| Quantity: | |
|---|---|

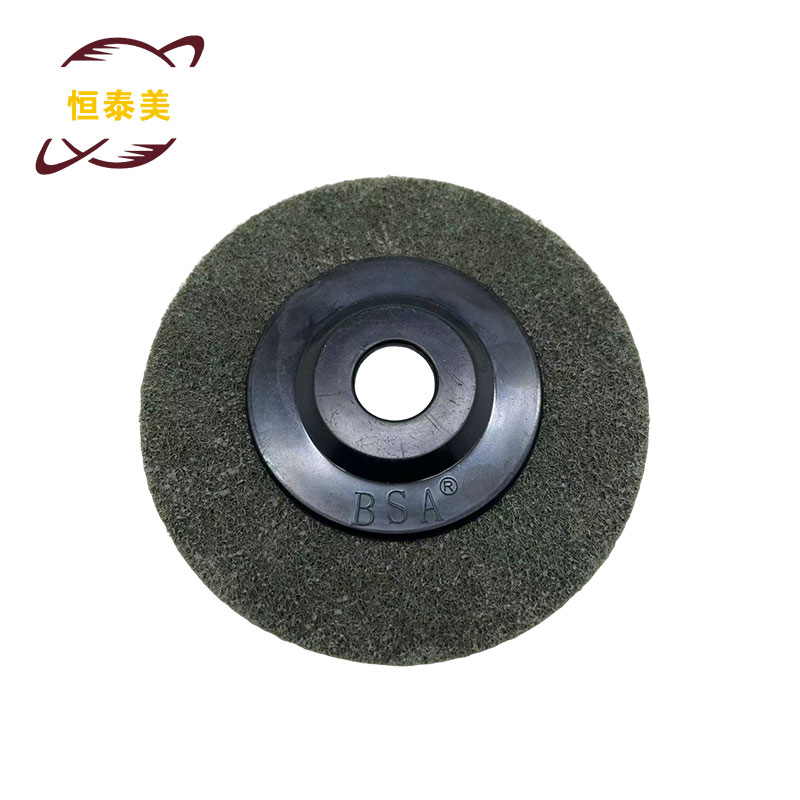

The HTM 4-inch Non-woven Nylon Grinding Disc is a high-performance mini abrasive tool developed by HTM for hand polishing machines. It adopts the latest special adhesive materials and combines nylon 66 fibers with abrasives of different properties to create the exclusive HM Comfort Series. Unlike bulky industrial grinding equipment, this flexible and durable grinding disc is specially designed for scenarios where large polishing machines are inconvenient to operate. It can easily access small and complex workpiece surfaces, and achieve consistent and standard grinding and polishing results. As a core product in the non-woven abrasive category, it has become a preferred tool for small-scale processing projects due to its excellent adaptability and customization potential.
The disc has a unique non-woven structure that effectively avoids clogging during long-term use. It maintains stable grinding efficiency and reduces the number of tool replacements.
It delivers high brightness and grinding effect on workpiece surfaces. After processing, the surface can meet uniform industry standards without scratches or unevenness.
The product supports multi-dimensional customization, covering diameter, thickness, hardness, color, and cover material. It is made of high-quality nylon 66 fibers and special adhesives, featuring strong wear resistance and long service life.
Base Material: High-strength nylon 66 fibers with good flexibility and tensile resistance, ensuring the disc does not deform easily during high-speed rotation.
Abrasive Material: Multi-property abrasives with precise particle size distribution, matching the adhesive material to enhance grinding stability.
Cover Material: Standard plastic cover, customizable glass fiber cover, with strong connection performance and not easy to fall off.
Parameters | Values | Customization Range |
Outer Diameter | 4inch (100MM) | 7.5CM–17.5CM (3inch–7inch) |
Width | 12mm | 0.5CM–3CM (0.2inch–1.2inch) |
Inner Diameter & Materials | Plastic cap: 16mm | Glass fiber cap: 22mm; other sizes/shapes available |
Grit Size | MED | CRS/FIN |
Density or Hardness | 7P | 5P/9P/12P |
Color | Green | Blue; other colors on demand |
Speed | 3000RPM | 3000RPM (fixed safe speed) |
It is suitable for grinding and polishing small metal workpieces, such as hardware accessories, precision instrument parts, and auto parts corners that are difficult to reach by large machines.
It can be used for deburring and polishing the surface of wooden furniture, cabinet edges, and decorative wood carvings, ensuring a smooth and delicate surface.
It is applicable to the surface treatment of small household appliance shells and internal components, helping to improve the surface finish and meet the appearance standards of finished products.
The grinding disc must be used with a hand polishing machine, and the operating speed should not exceed 3000RPM to avoid safety hazards.
Operators should wear professional protective equipment, including goggles and dust masks, to prevent abrasive dust from entering the eyes and respiratory tract.
Select the appropriate hardness (5P–12P) according to the workpiece material. Soft materials are suitable for low-hardness discs, and hard materials are suitable for high-hardness discs.
Store the unused grinding discs in a dry and ventilated environment to prevent moisture from affecting the adhesive performance.
Yes, we support customized outer diameters from 3inch to 7inch, and can also produce special diameters according to your drawings and requirements.
The normal density (hardness) of the HTM 4-inch non-woven nylon grinding disc is 9P, which is suitable for most metal and wood grinding scenarios.
Yes, the glass fiber cover has higher strength and heat resistance, which is suitable for high-intensity and long-time grinding operations.
Are you looking for a flexible and efficient mini abrasive tool for small-scale polishing projects? The HTM 4-inch Non-woven Nylon Grinding Disc is your ideal choice! Click the "Inquire" button to get the latest quotation, or "Add to Basket" to place an order directly. Our professional team can provide you with one-stop customization solutions to meet your personalized processing needs. Contact us now and start your high-quality grinding journey!
